Product Features
💻 Digital flowmeter with big screen
📈 France Imported Molecular sieve bed
🔈 Noise (T): 40dB
📦 Reliable and durable oil free compressor
🏠 America PSA technology offer health oxygen
💡 Self diagnostic system with error code indication
⏳ 24 hours working available and 10000 hours lifespan
Specifications

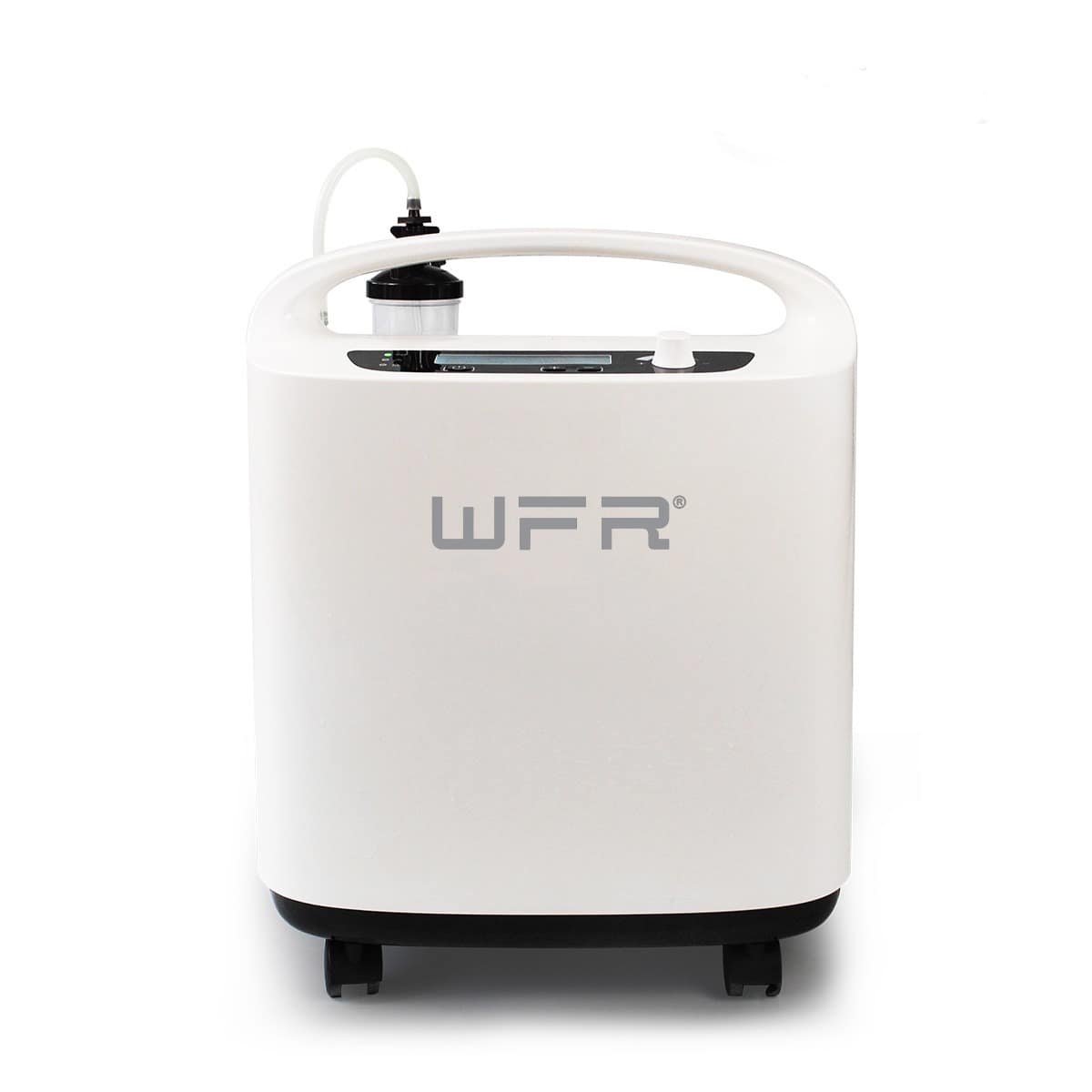

| Model | KSW-5 Silent Mode | ||
|---|---|---|---|
| Product Specifications | Maximum recommended flow | 5 l/min | |
| Flowrate | 0-5 l/min | ||
| Oxygen Concentration | 90-96% | ||
| Outlet pressure | 30-80kPa | ||
| The noise value | 54 db (A) or less | ||
| Physical Characteristics | Product Size | 410*270*560MM | |
| Dimension of outer packing | 472*322*655MM | ||
| Net weight | 19kg | ||
| Gross weight | 21kg | ||
| User interface | Push buttons, LCD, Flow adjustment knob | ||
| Filtration | Sponge filter, Intake filter, Bacterial filter | ||
| Operating conditions | Operating environment temperature | 5~40°C | |
| Relative humidity | ≤75% | ||
| Atmospheric pressure range | 86~106kPa | ||
| Storage conditions | Temperature | -40~+55°C | |
| Relative humidity | 50~106kPa | ||
| AC power | Input | AC 230 v, 50 hz | |
| Power consumption | 450 VA | ||
| Audible alarm | Standard alarm | Power off alarm | |
| High/low pressure alarm | |||
| Temperature alarm | |||
| Error code indication | |||
| Low oxygen purity display and alarm | |||
| Optional alarm | Nebulizer | ||
